準確的不平衡量測量，同時用于小而輕的轉子
單面或者雙面平衡
平衡轉速120-800轉/分
緊湊型設計，占地小并且裝配容易

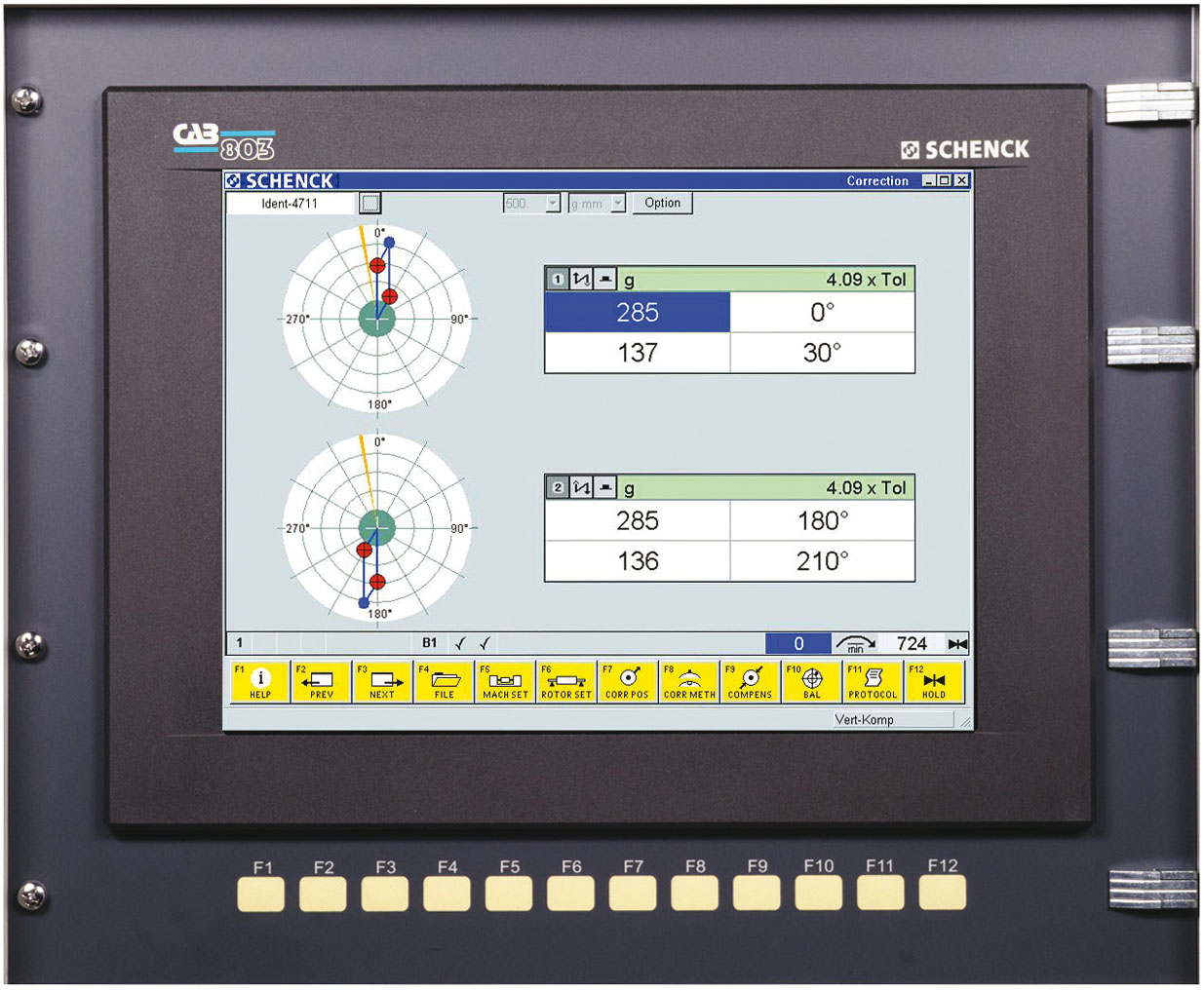

微處理器或者電腦控制 測量單元帶操作向?qū)Ы缑?，并且直接的不平衡量校正顯示
鉆削校正單元，包括吸塵器（選項）
|
Technical
data at a glance 技術數據一覽 |
VE1-1/2 | VE2-1/2 | VE3-1/2 | |
|
Rotor
diameter, max 最大轉子直徑 |
[mm] | 400 | 850 | 850 |
|
- including cover protection 包含防護罩 |
[mm] | 400 | 600 | 600 |
|
- including correction unit 包含校正單元 |
[mm] | 400 | 600 | 600 |
|
Minimal
distance between planes 兩個平面間最小距離 |
[mm] | 30 | 30 | 40 |
|
Balancing
speed 平衡轉速 |
[rpm] | 120-1200 | 120-800 | 120-800 |
|
Measurement
uncertainty 測量不確定性 |
[gmm] | 2 ... 6 | 7 ... 50 | 20 ... 120 |
|
Rotor
weight (including tooling) 轉子重量(包含夾具) |
[kg] | 10 | 30 | 100 |
|
Drive
power 驅動功率 |
[kW] | 0.55 | 1.5 | 2.2 |
|
Power
requirement 電源要求 |
3 / PE AC 50 Hz 400 V ±10% |
