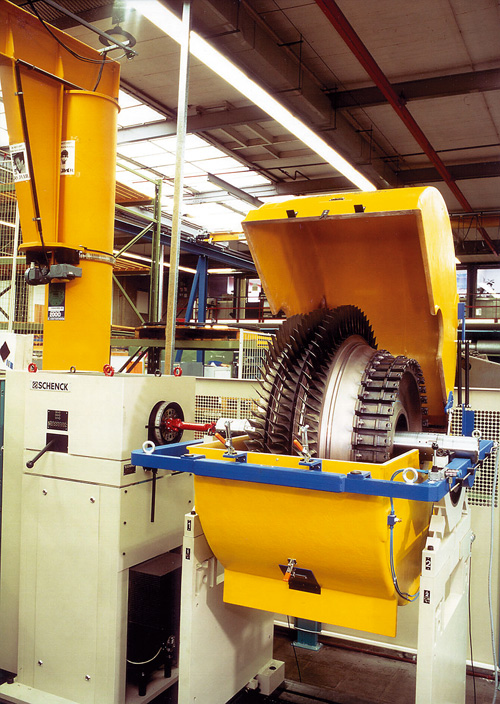

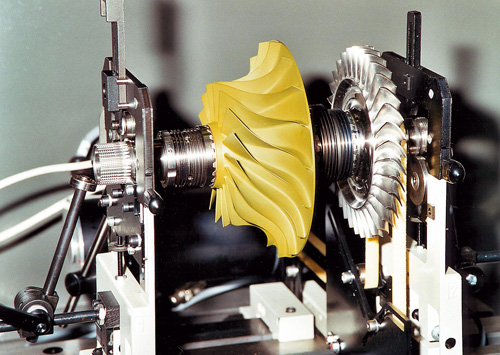

模塊化設計用于不同的可選應用場合和驅動系統
簡單和操作安全
擴展防護罩和安全系統保護操作者，設備和環境
高精度測量通過數字測量數據處理
| Technical data at a glance技術數據一覽 | HL 1 BU | HL 2 BU | HL 3 UB | HL 4 UB | HL 5 UB | HL 50 UB | HL 6 U | |
| Measuring unit測量單元 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | CAB 925 | |
| End drive端驅動 | ? | ? | ? | ? | ? | |||
| Belt drive皮帶驅動 | ? | ? | ? | ? | ? | ? | ||
|
SAE
Mechine class 2) SAE設備級別 |
[lb] | 30 | 100 | 300 | 1000 | 3000 | ||
| Rotor轉子 | ||||||||
| Weight重量 | [kg] | 16 | 1 - 100 | 1,5 - 200 | 1,5 - 700 | 5 - 1400 | 20 - 2800 | 50 - 5000 |
| Diameter, max. 1)最大直徑 | [mm] | 360 | 800 | 1260 | 1600 | 1600 | 3000 | 3400 |
| Journal diameter 6)軸頸直徑 | [mm] | 6 - 70 | 9 - 140 | 9 - 140 | 12 - 200 | 18 - 280 | 35 - 305 | 35 - 305 |
| Saddle size 2)軸瓦尺寸 | (Zoll) | 4 | 6 | 6 | 10 | 13 | 20 | 20 |
| Saddle insert內嵌瓦 | (Zoll) | - | - | - | 10 / 8 | - | 20 / 13 | - |
| Length, max.標準長度 | [mm] | 450 | 1380 | 1540 | 2170 | 2435 | 3860 | 4000 |
| Machine設備 | ||||||||
| Width A 5)寬度 | [mm] | 1500 | 2500 | 3500 | 4500 | 5000 | 7000 | 8000 |
| Depth B 5)深度 | [mm] | 1000 | 1500 | 2000 | 2500 | 2500 | 3000 | 5500 |
| Height C 5)高度 | [mm] | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2500 |
| End-drive 4)端驅動 | ||||||||
|
Variable
balancing speed, max. 可變平衡轉速，最大 |
[min -1] | - | - | 1130 | 1340 | 960 | 960 | 2180 |
| Drive power驅動功率 | (kW) | - | - | 2.2 | 7.5 | 37 | 55 | max. 250 |
| Belt drive 4)皮帶驅動 | ||||||||
|
Variable
balancing speed, max. 3) 可變平衡轉速，最大 |
[min -1] | 1140 | 1600 | 1900 | 1600 | 1350 | 2520 | - |
| Drive power驅動功率 | (kW) | 0.13 | 2.2 | 2.2 | 7.5 | 22 | 55 | - |
|
Balancing
accuracy 2) 平衡精度 |
(μ inch) | 10 | 10 | 10 | 10 | 15 | 15 | 15 |
|
SAE test
rotor, weight 7) SAE測試轉子，重量 |
[lb] | 11 | 50 | 50 | 50 | 150 | 500 | 500 |
|
Power
requirement 電源要求 |
[V] | 230 | 400 8) | 400 8) | 400 8) | 400 8) | 400 8) | 400 8) |
|
<order
number/>Basic machine <訂購號/>基本機器 |
Order No.訂購號 | R0460100.01 | R0460200.01 | R0460300.01 | R0460400.01 | R0460500.01 | R0460600.01 | R0460700.01 |
| <options/>Options選項 | ||||||||
|
<order
number/>Roller bearing carriages <訂購號/>滾輪支撐板 |
Order No.訂購號 | R0460101.01 | R0460201.01 | R0460301.01 | R0460401.01 | R0460501.01 | R0460601.01 | R0460701.01 |
|
Drive
lock 驅動鎖緊 |
Order No.訂購號 | - | - | - | R0460402.01 | R0460502.01 | R0460602.01 | R0460702.01 |
|
Protective
enclosure, type C 防護罩，C級 |
Order No.訂購號 | R0460103.01 | R0460203.01 | R0460303.01 | R0460403.01 | R0460503.01 | - | - |
|
Protective
fence, type B 防護圍欄，B級 |
Order No.訂購號 | - | - | - | - | - | R0460604.01 | R0460704.01 |
|
SAE test
rotor ARP 4162 SAE測試轉子 ARP 4162 |
Order No.訂購號 | R0460105.01 | R0460205.01 | R0460305.01 | R0460405.01 | R0460505.01 | R0460605.01 | R0460705.01 |
|
Report
printout equipment 報告打印設備 |
Order No.訂購號 | R0460106.01 | R0460206.01 | R0460306.01 | R0460406.01 | R0460506.01 | R0460606.01 | R0460706.01 |
|
<notes/>1)
Limitation in the area of the belt-drive equipment <注意/>1)限制在皮帶驅動區域 |
||||||||
|
2)
Corresponding to SAE ARP 4048 按照SAE ARP 4048標準 |
||||||||
|
3) With
drive diameter 100 mm, from model HL5UB with 200 mm 驅動直徑100mm處，從HL5UB以上是驅動直徑200mm處 |
||||||||
|
4)
Various drive variants on request 多種驅動形式按需提供 |
||||||||
|
5) Data
non-binding, dependent on the respective equipment 不具約束性數據，對應相應設備 |
||||||||
|
6 ) With
optional roller bearings 配可選滾輪支撐 |
||||||||
| 7) Option選項 | ||||||||
|
8) Power
configuration: 3 / PE AC 50Hz 400 V +6 / -10% 電源配置：3相交流50赫茲 400伏特+6 / -10% |
